Magic Gamepad — Installation & Setup Guide

Download and Install the App

Download the desktop app from the provided link or by searching on Google: download
Open the setup file.

Click "I agree to the Licenses terms and conditions"

If you want to change the location, change the installation location and then click "Next."

Click "Install"

For the app to work properly, it's recommended to reboot your system. You can do this by checking the reboot option and clicking "Finish," or click "No, I will restart the computer later" and click "Finish" to complete the setup without rebooting.

Connecting Your Mobile to Desktop

For Wi-Fi, mobile hotspot, or USB tethering, both devices must be on the same local network (no internet connection is required). If you're using mobile hotspot or USB tethering, turn off mobile data or Wi-Fi on the Android device to ensure proper connection, or connect manually if needed. For Bluetooth, pair the devices before connecting through the app.

Open the desktop app.

You'll see the connection status and IP address displayed.

Connecting via Wi-Fi or Mobile Hotspot

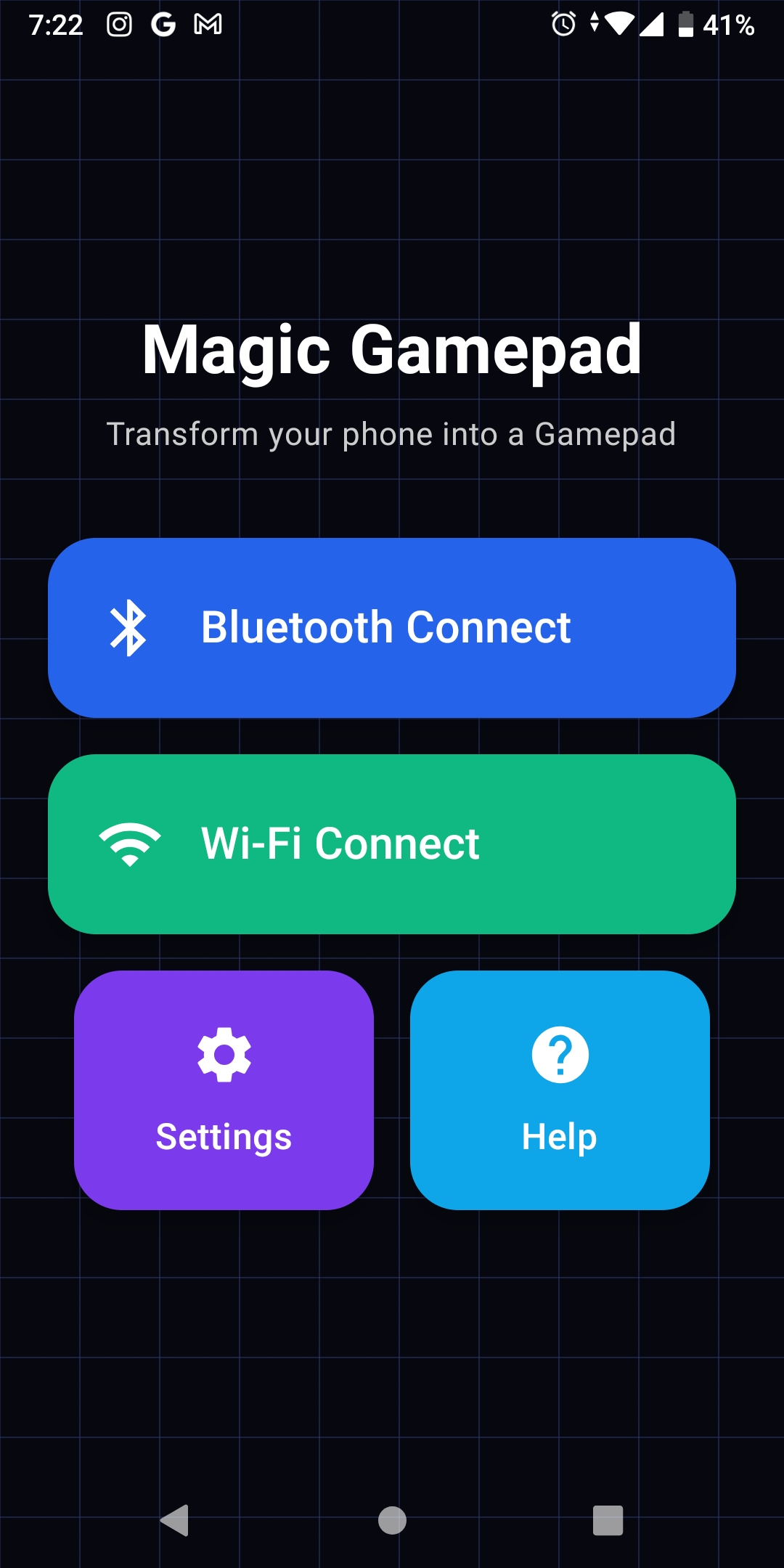

On your mobile device, open the app.

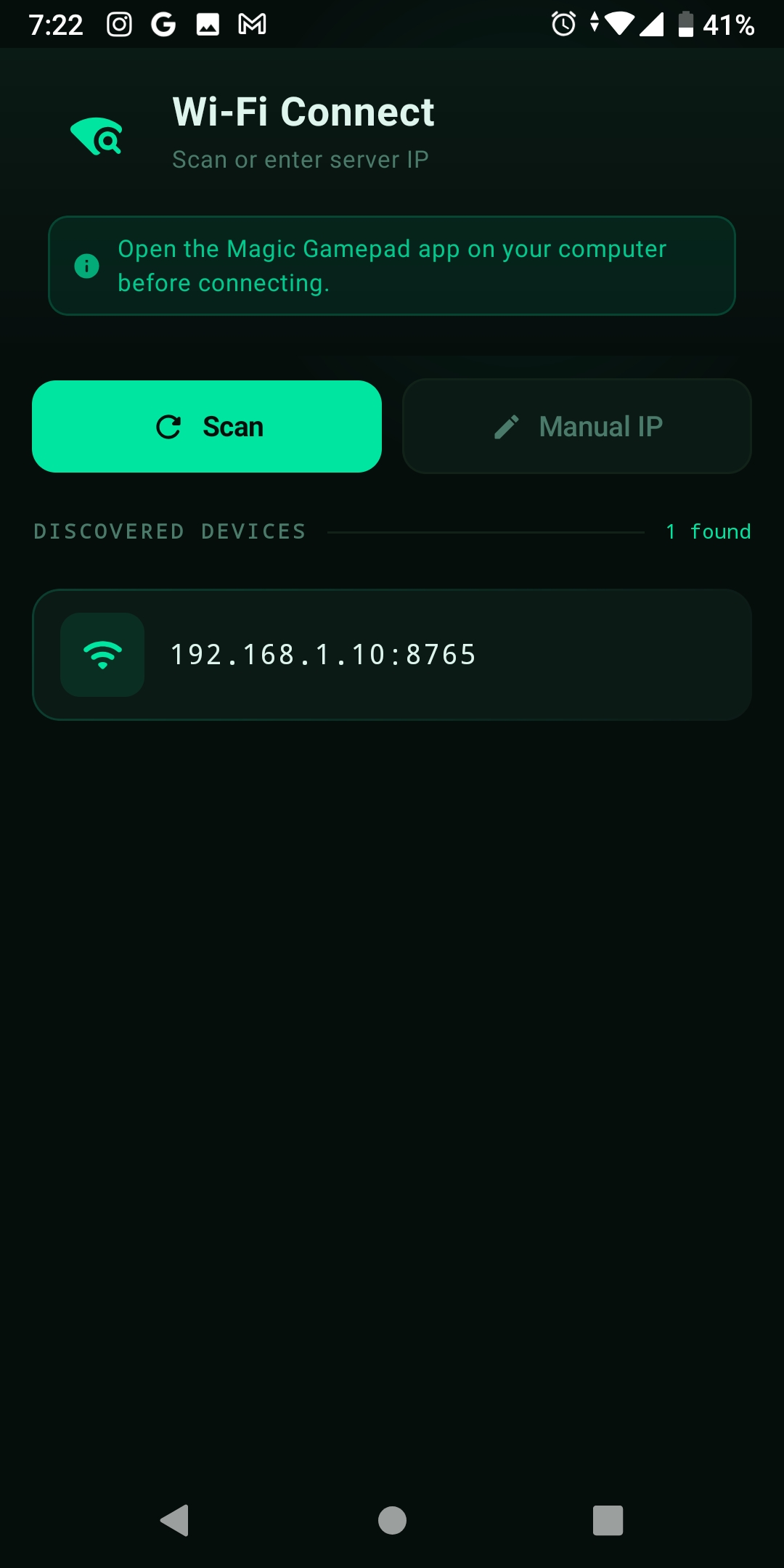

Click "Wi-Fi Connect" then it will scan for nearby windows PC's running Magic Gamepad and display its local IP Address.

Select your Windows PC's local IP from the list to connect to your computer.

Or click "Manual IP" enter the displayed IP address, and click "Connect."

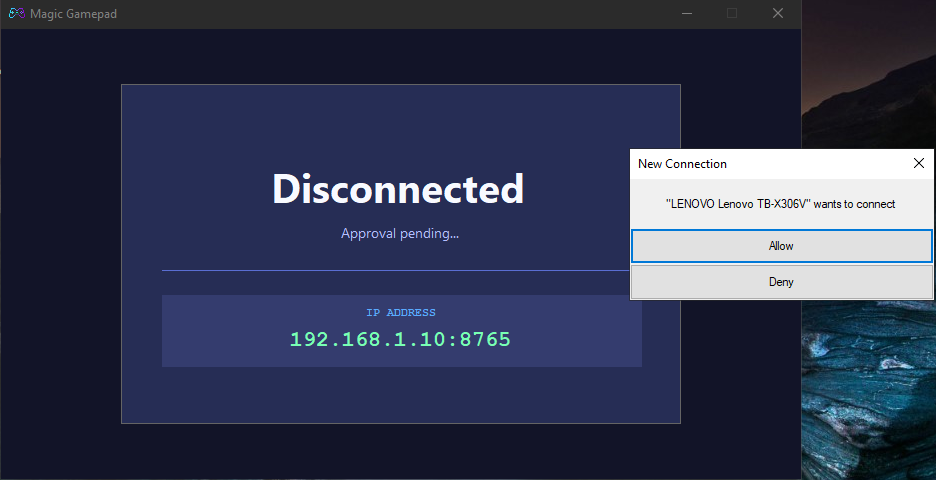

Now you can see a prompt with your device name asking for allowing connection. Click allow

Note: If you want to connect two or more devices, ensure all devices are connected to the same Wi-Fi network and repeat the connection steps for each device. If you are experiencing any delay, try connecting with USB tethering.

Connecting via USB Tethering

Connect a USB cable to your computer and open settings.

Click "Network and internet"

Click "Hotspot and tethering"

Enable USB tethering.

Note: This method may vary depending on the phone brand.

Important: If you want to connect multiple devices using USB tethering, make sure all desired devices are connected before opening the app. Ensure that Wi-Fi and mobile data are disabled while connecting the Android device to prevent any connection conflicts.

Open Magic Gamepad on both the computer and phone and connect as you would with the Wi-Fi method.

If you prefer a video tutorial, click here

Connecting via Bluetooth

Magic Gamepad supports two Bluetooth connection modes. Choose the mode that best suits your device and follow the corresponding setup instructions below.

Open the mobile app.

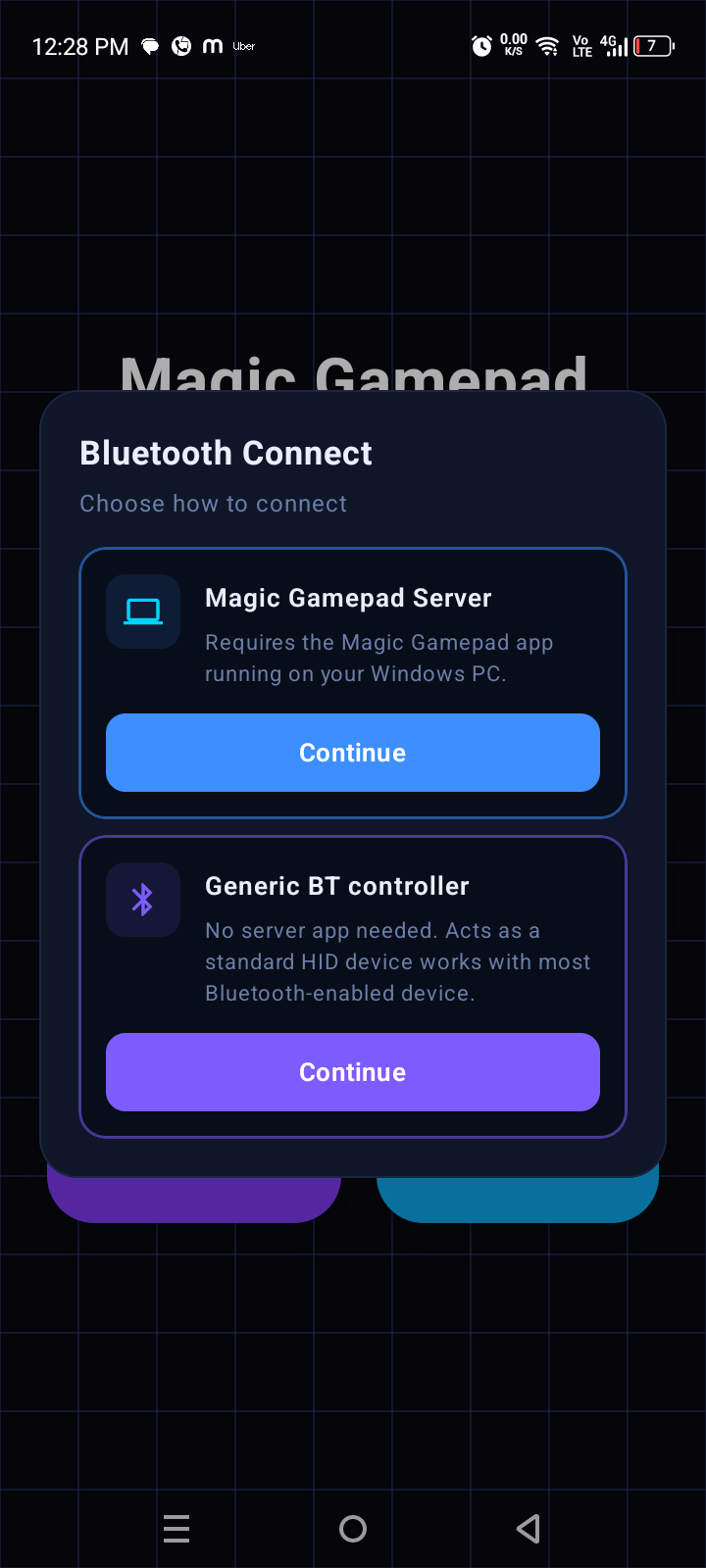

Tap Bluetooth Connect to choose a Bluetooth connection mode.

Magic Gamepad Server

Pair your phone and Windows PC before connecting. If they are already paired, you can continue.

Click the Continue under the Magic Gamepad Server section

Open the desktop app.

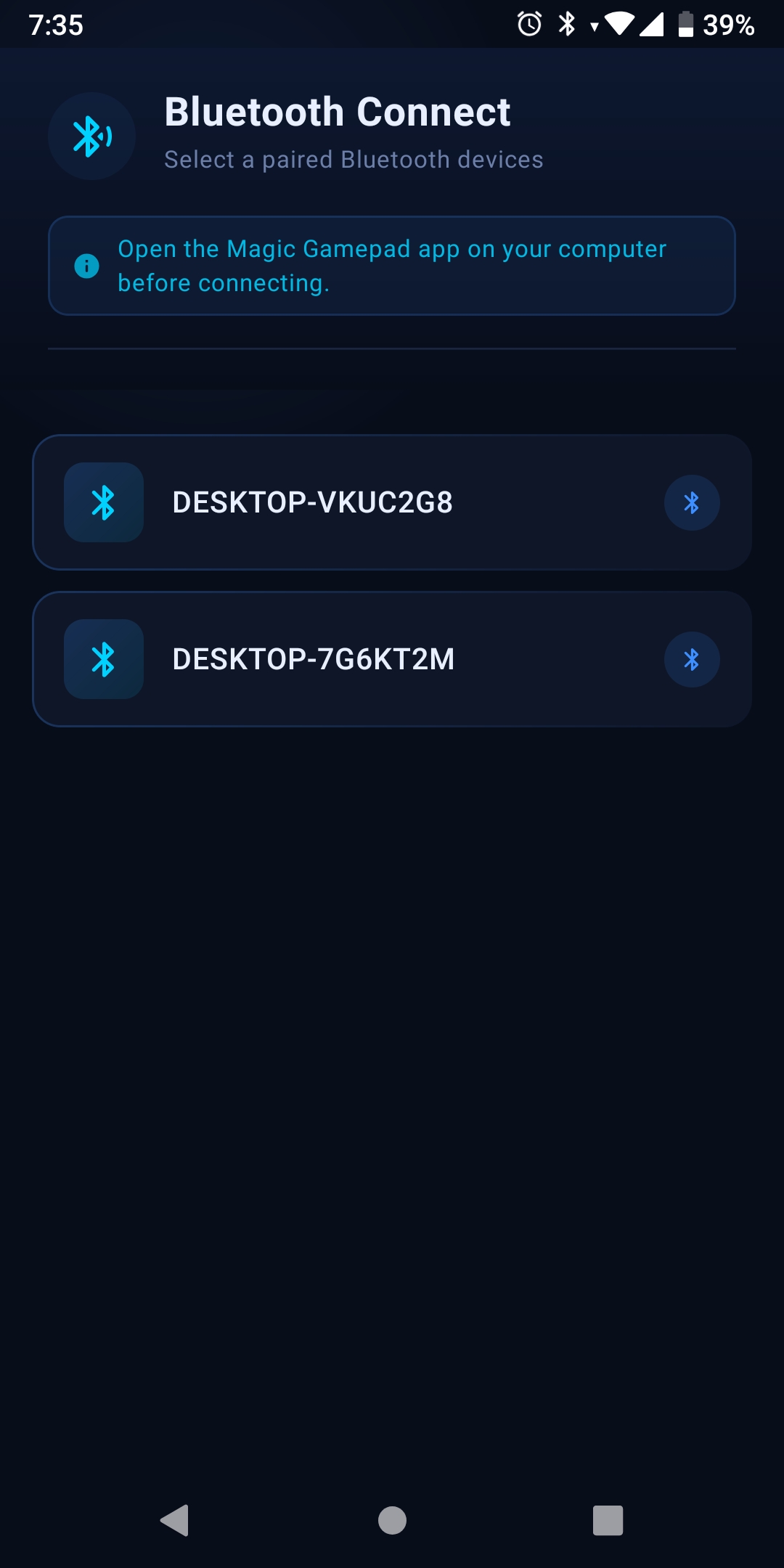

Select your desktop's name. After selecting, your phone will connect. Now you can start controlling your desktop.

If you prefer a video tutorial, click here

Generic BT Controller

Important: Bluetooth pairing must be performed while the Generic BT controller screen is open. If the target device was previously paired while this screen was not open, remove (forget) the pairing from your phone's Bluetooth settings before pairing again.

Click the Continue under the Generic BT controller section

If the target device was previously paired while this screen was not open, remove (forget) the pairing from your phone's Bluetooth settings.

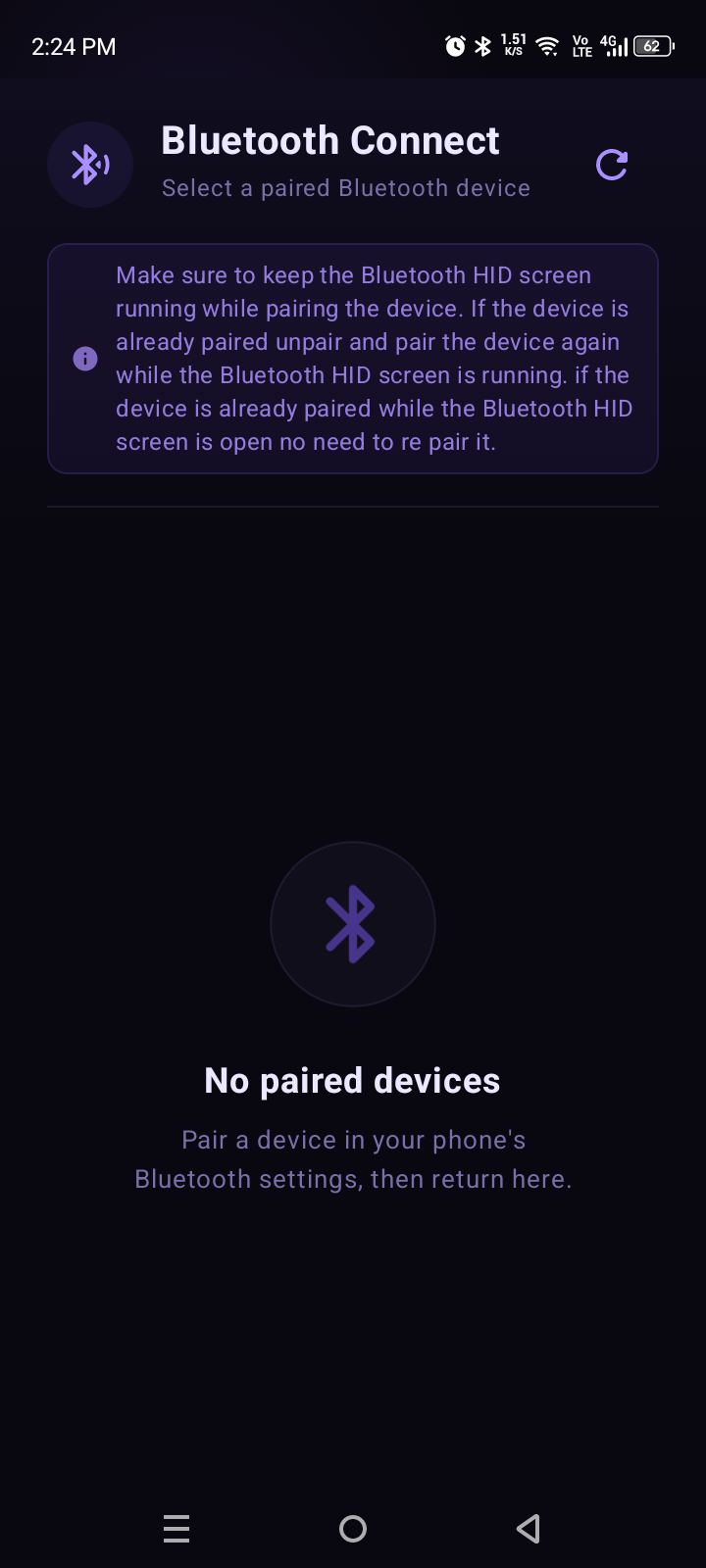

Keep the Bluetooth HID Controller screen open. And open your phone's Bluetooth settings.

Pair your phone with the target device using your phone's Bluetooth settings, then return to Magic Gamepad.

Select the paired device from the list. Magic Gamepad will connect automatically, and you can start controlling the device.

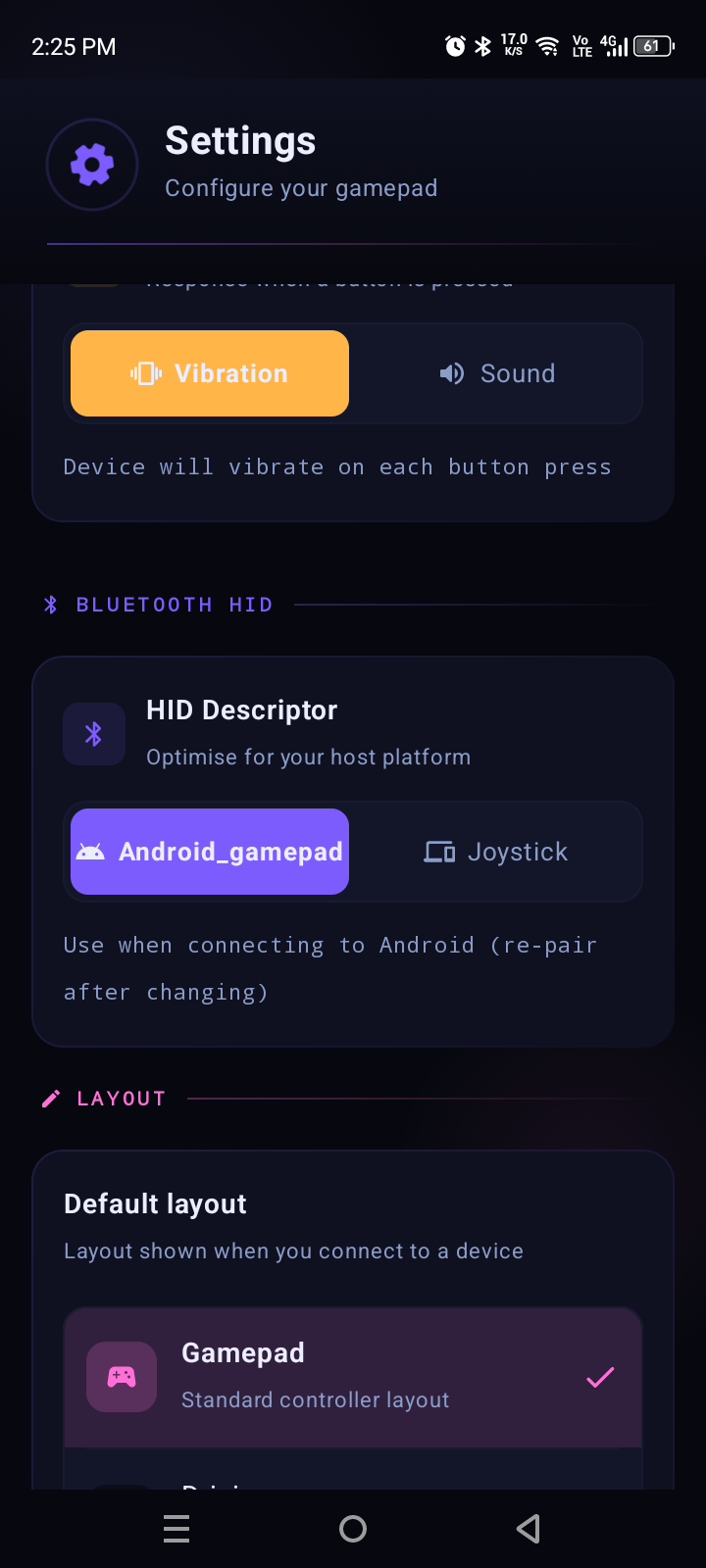

Changing the Bluetooth HID Descriptor:

Magic Gamepad provides two Bluetooth HID descriptors for better compatibility with different devices.

Use the Android Gamepad descriptor when connecting to Android devices such as phones, tablets, or Android TV.
Use the Joystick descriptor for Windows, Linux, and other supported Bluetooth HID hosts.

If you change the Bluetooth HID descriptor in Settings, you must remove (forget) the existing Bluetooth pairing and pair the device again while the Generic BT Controller screen is open.

If you prefer a video tutorial, click here

Multiplayer Support

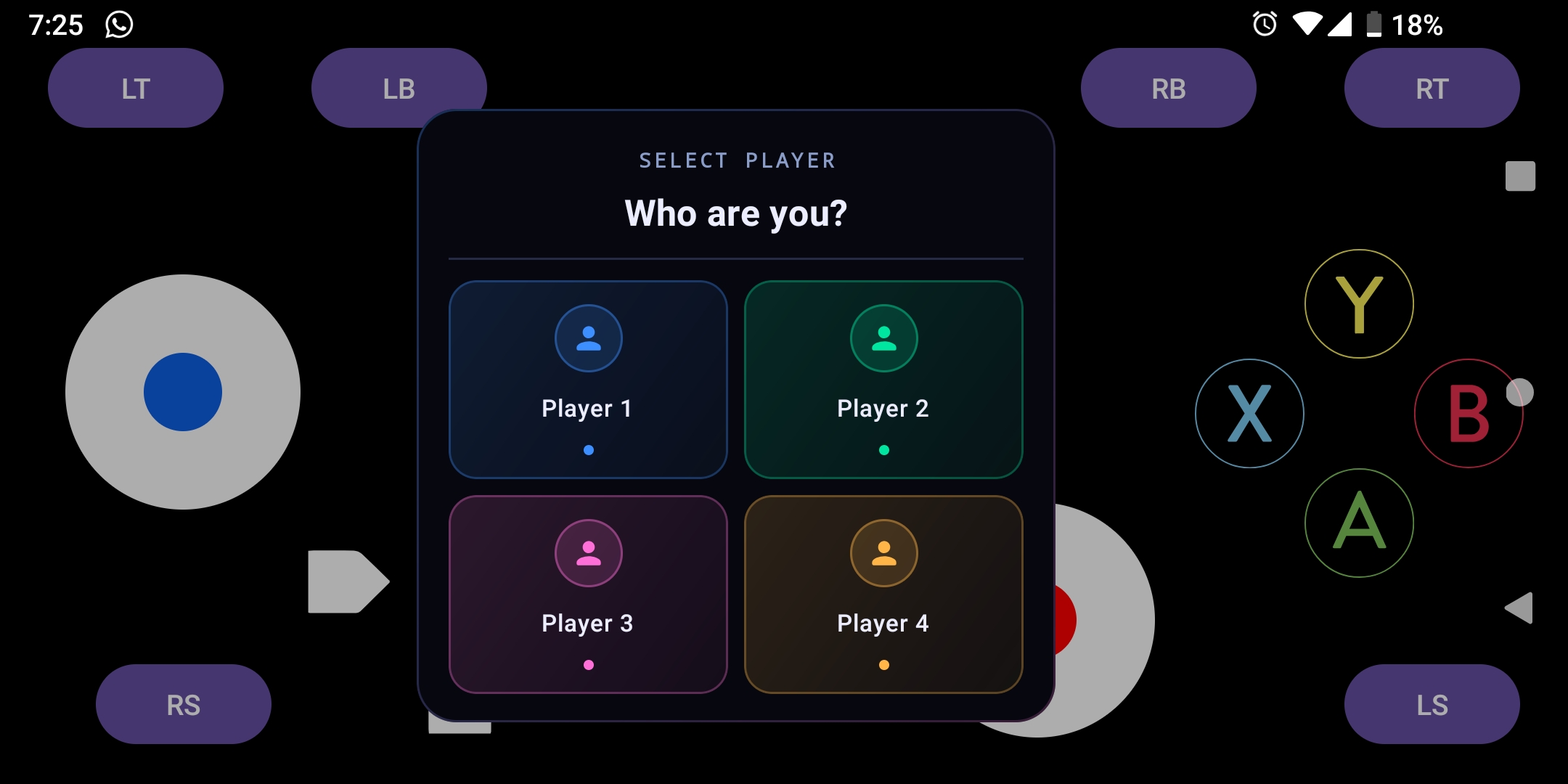

Once connected, MagicGamepad will display a gamepad UI along with a dialogue box that provides an option to select the player number/controller number. This allows for easy identification and configuration for multiple users or devices.

You can connect up to 4 devices and should ensure that you select different numbers for different users.

Gameplay

Watch a gameplay demo to see MagicGamepad in action. Click here

Customization

You can customize the controls to suit your needs. Here's a quick video on how to do it.

Additional Features

Control target device Volume

You can use the volume buttons on your phone to control the volume of your target device.

Phone as Touchpad

You can use your phone as a touchpad.

Phone as Keyboard

You can use your phone as a keyboard.
